Champcut 100 Air Plasma Cutting Machine (100A)
Champcut 100 is an industrial-grade IGBT inverter air plasma cutting machine. Three-phase 415V, 30-100A rated output, clean precise cuts up to 35mm, CNC-integration ready, with 7-segment LED display, post-flow cooling, and auto-reset protections.
- Shipping across India
- Quality tested, durable & reliable
- Dedicated after sales support

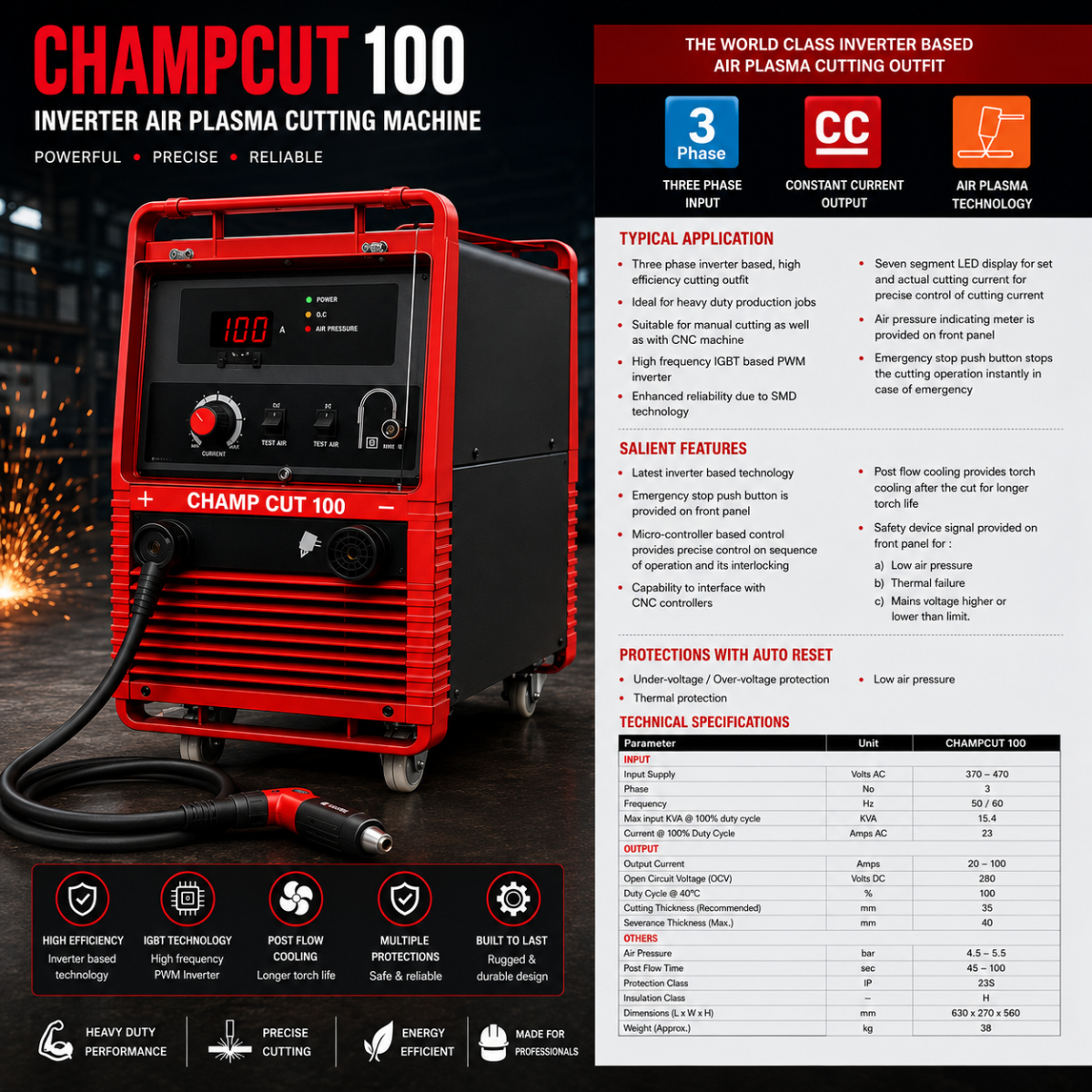

Champcut 100 Air Plasma Cutting Machine
The Champcut 100 is a world-class, three-phase IGBT inverter-based air plasma cutting outfit for high-efficiency, heavy-duty production cutting. It makes clean, precise cuts up to 35 mm deep and can be used for manual cutting or automated via CNC integration. A 7-segment LED display shows set and actual cutting current, an air-pressure meter and emergency stop are provided on the front panel, and post-flow cooling extends torch life. Auto-reset protections cover under/over voltage, thermal failure, and low air pressure.
Key Features
- IGBT inverter air plasma cutter
- Rated output 30-100 A
- Maximum cutting capacity 35 mm
- Manual or CNC-integrated cutting
- 7-segment LED current display
- Air-pressure meter & emergency stop
- Post-flow torch cooling
- Auto-reset protections
Applications
- Heavy-duty production cutting
- Sheet & plate cutting
- CNC plasma cutting tables
- Fabrication & manufacturing
- Structural & shipyard work
| Model | Champcut 100 |
|---|---|
| Type | IGBT Inverter Air Plasma Cutter |
| Rated Output Current | 30-100 Amps |
| Max Cutting Capacity | 35 mm |
| Input | 370-470V AC, 3-Phase, 50/60Hz, 15.4 KVA |
| Air Pressure | 0.45-0.55 MPa (70-150 L/min) |
| Control | Manual / CNC Integration |
| Display | 7-Segment LED |
| Country of Origin | India |
