Champ T400 Inverter DC Welding Machine (400A)
Champ T400 is a 3-phase IGBT inverter DC welding machine delivering 10-400A for heavy-duty industrial, structural, and pipeline welding with cellulosic electrodes (6010, 7010G). >84% efficiency, PF up to 0.93, IP23, arc force adjustment, extended 100m+100m cable support.
- Shipping across India
- Quality tested, durable & reliable
- Dedicated after sales support

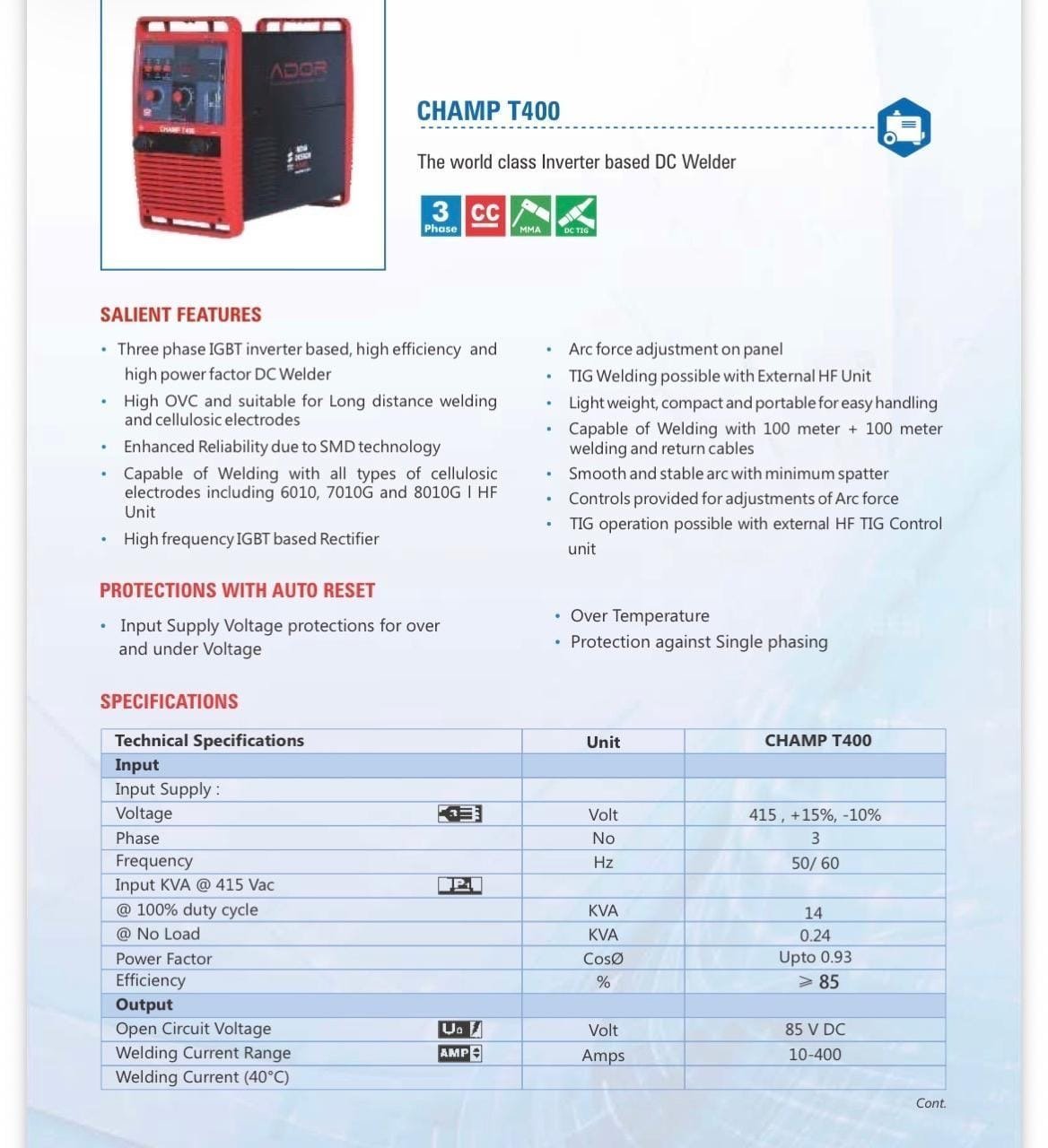

Champ T400 Inverter DC Welding Machine
The Champ T400 is a 3-phase, IGBT-based inverter DC welding machine delivering 10-400 amps for heavy-duty industrial, structural, and pipeline welding using cellulosic electrodes such as 6010 and 7010G. With over 84% efficiency, a power factor up to 0.93, and IP23 protection, it is engineered to run smoothly with extremely long welding and return cables (up to 100 m + 100 m) without significant power drop. Dial-in arc-force adjustment fine-tunes the MMA arc, and smart auto-reset protections cover over/under voltage, over-temperature, and single phasing.
Key Features
- 3-phase IGBT inverter DC welder
- Output 10-400 A
- For cellulosic electrodes (6010, 7010G)
- >84% efficiency, PF up to 0.93
- IP23 protection class
- Arc-force adjustment on panel
- Extended 100m + 100m cable support
- TIG possible with external HF unit
Applications
- Pipeline welding
- Structural & heavy industrial welding
- Cellulosic electrode welding
- Fabrication & construction
- Long-distance site welding
| Model | Champ T400 |
|---|---|
| Type | 3-Phase IGBT Inverter DC Welder |
| Current Range | 10-400 A |
| Input | 415V, 3-Phase, 50/60Hz, 14 KVA |
| Efficiency / PF | >84% / up to 0.93 |
| Duty Cycle | 60% @ 400A |
| Open Circuit Voltage | 85 V DC |
| Protection Class | IP23 |
| Cable Support | Up to 100m + 100m |
| Country of Origin | India |
